Wednesday, 29 May 2013

Understanding "IP classless" command in Cisco Routers

IP Classless

Where the ip classless configuration command falls within the routing and forwarding processes is often confusing. In reality, IP classless only affects the operation of the forwarding processes in IOS; it doesn't affect the way the routing table is built. If IP classless isn't configured (using the no ip classless command), the router won't forward packets to supernets. As an example, let's again place three routes in the routing table and route packets through the router.
Note: If the supernet or default route is learned via IS-IS or OSPF, the no ip classless configuration command is ignored. In this case, packet switching behavior works as though ip classless were configured.
router# show ip route
.... is variably  subnetted, 2 subnets, 2 masks
D [90/4879540] via
D  [90/25789217] via
S* [1/0] via
Remembering that the network includes the addresses through, and the network includes the addresses through, we can then try switching three packets through this routing table and see what the results are.
  • A packet destined to is forwarded to, since this is the longest prefix match.
  • A packet destined to is forwarded to, since this is the longest prefix match.
  • A packet destined to is forwarded to; since this network doesn't exist in the routing table, this packet is forwarded to the default route.
  • A packet destined to is dropped.
The surprising answer out of these four is the last packet, which is dropped. It's dropped because its destination,, is within a known major network,, but the router doesn't know about this particular subnet within that major network.
This is the essence of classful routing: If one part of a major network is known, but the subnet toward which the packet is destined within that major network is unknown, the packet is dropped.
The most confusing aspect of this rule is that the router only uses the default route if the destination major network doesn't exist in the routing table at all.
This can cause problems in a network where a remote site, with one connection back to the rest of the network, is running no routing protocols, as illustrated.
The remote site router is configured like this:
interface Serial 0
     ip address
   interface Ethernet 0
     ip address
   ip route
   no ip classless
With this configuration, the hosts at the remote site can reach destinations on the Internet (through the 10.x.x.x cloud), but not destinations within the 10.x.x.x cloud, which is the corporate network. Because the remote router knows about some part of the network, the two directly connected subnets, and no other subnet of 10.x.x.x, it assumes these other subnets don't exist and drops any packets destined for them. Traffic destined to the Internet, however, doesn't ever have a destination in the 10.x.x.x range of addresses, and is therefore correctly routed through the default route.
Configuring ip classless on the remote router resolves this problem by allowing the router to ignore the classful boundaries of the networks in its routing table and simply route to the longest prefix match it can find.
info source:

Friday, 17 May 2013

Understanding Bidirectional PIM

Understanding Bidirectional PIM

Bidirectional PIM (PIM-Bidir) is specified by the IETF in RFC 5015, Bidirectional Protocol Independent Multicast (BIDIR-PIM). It provides an alternative to other PIM modes, such as PIM sparse mode (PIM-SM), PIM dense mode (PIM-DM), and PIM source-specific multicast (SSM). In bidirectional PIM, multicast groups are carried across the network over bidirectional shared trees. This type of tree minimizes the amount of PIM routing state information that must be maintained, which is especially important in networks with numerous and dispersed senders and receivers. For example, one important application for bidirectional PIM is distributed inventory polling. In many-to-many applications, a multicast query from one station generates multicast responses from many stations. For each multicast group, such an application generates a large number of (S,G) routes for each station in PIM-SM, PIM-DM, or SSM. The problem is even worse in applications that use bursty sources, resulting in frequently changing multicast tables and, therefore, performance problems in routers.

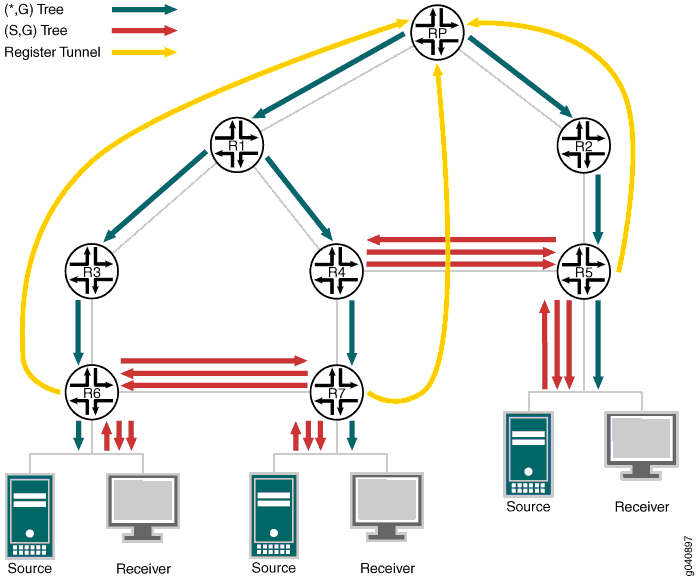

Figure 1 shows the traffic flows generated to deliver traffic for one group to and from three stations in a PIM-SM network.
Figure 1: Example PIM Sparse-Mode Tree
Example PIM Sparse-Mode Tree
Bidirectional PIM solves this problem by building only group-specific (*,G) state. Thus, only a single (*,G) route is needed for each group to deliver traffic to and from all the sources.
Figure 2 shows the traffic flows generated to deliver traffic for one group to and from three stations in a bidirectional PIM network.
Figure 2: Example Bidirectional PIM Tree
Example Bidirectional PIM
Bidirectional PIM builds bidirectional shared trees that are rooted at a rendezvous point (RP) address. Bidirectional traffic does not switch to shortest path trees (SPTs) as in PIM-SM and is therefore optimized for routing state size instead of path length. Bidirectional PIM routes are always wildcard-source (*,G) routes. The protocol eliminates the need for (S,G) routes and data-triggered events. The bidirectional (*,G) group trees carry traffic both upstream from senders toward the RP, and downstream from the RP to receivers. As a consequence, the strict reverse path forwarding (RPF)-based rules found in other PIM modes do not apply to bidirectional PIM. Instead, bidirectional PIM routes forward traffic from all sources and the RP. Thus, bidirectional PIM routers must have the ability to accept traffic on many potential incoming interfaces.

Designated Forwarder Election

To prevent forwarding loops, only one router on each link or subnet (including point-to-point links) is a designated forwarder (DF). The responsibilities of the DF are to forward downstream traffic onto the link toward the receivers and to forward upstream traffic from the link toward the RP address. Bidirectional PIM relies on a process called DF election to choose the DF router for each interface and for each RP address. Each bidirectional PIM router in a subnet advertises its interior gateway protocol (IGP) unicast route to the RP address. The router with the best IGP unicast route to the RP address wins the DF election. Each router advertises its IGP route metrics in DF Offer, Winner, Backoff, and Pass messages.
Junos OS implements the DF election procedures as stated in RFC 5015, except that Junos OS checks RP unicast reachability before accepting incoming DF messages. DF messages for unreachable rendezvous points are ignored.

Bidirectional PIM Modes

In the Junos OS implementation, there are two modes for bidirectional PIM: bidirectional-sparse and bidirectional-sparse-dense. The differences between bidirectional-sparse and bidirectional-sparse-dense modes are the same as the differences between sparse mode and sparse-dense mode. Sparse-dense mode allows the interface to operate on a per-group basis in either sparse or dense mode. A group specified as “dense” is not mapped to an RP. Use bidirectional-sparse-dense mode when you have a mix of bidirectional groups, sparse groups, and dense groups in your network. One typical scenario for this is the use of auto-RP, which uses dense-mode flooding to bootstrap itself for sparse mode or bidirectional mode. In general, the dense groups could be for any flows that the network design requires to be flooded.
Each group-to-RP mapping is controlled by the RP group-ranges statement and the ssm-groups statement.
The choice of PIM mode is closely tied to controlling how groups are mapped to PIM modes, as follows:
  • bidirectional-sparse—Use if all multicast groups are operating in bidirectional, sparse, or SSM mode.
  • bidirectional-sparse-dense—Use if multicast groups, except those that are specified in the dense-groups statement, are operating in bidirectional, sparse, or SSM mode.

Bidirectional Rendezvous Points

You can configure group-range-to-RP mappings network-wide statically, or only on routers connected to the RP addresses and advertise them dynamically. Unlike rendezvous points for PIM-SM, which must de-encapsulate PIM Register messages and perform other specific protocol actions, bidirectional PIM rendezvous points implement no specific functionality. RP addresses are simply locations in the network to rendezvous toward. In fact, RP addresses need not be loopback interface addresses or even be addresses configured on any router, as long as they are covered by a subnet that is connected to a bidirectional PIM-capable router and advertised to the network.
Thus, for bidirectional PIM, there is no meaningful distinction between static and local RP addresses. Therefore, bidirectional PIM rendezvous points are configured at the [edit protocols pim rp bidirectional] hierarchy level, not under static or local.
The settings at the [edit protocol pim rp bidirectional] hierarchy level function like the settings at the [edit protocols pim rp local] hierarchy level, except that they create bidirectional PIM RP state instead of PIM-SM RP state.
Where only a single local RP can be configured, multiple bidirectional rendezvous points can be configured having group ranges that are the same, different, or overlapping. It is also permissible for a group range or RP address to be configured as bidirectional and either static or local for sparse-mode.
If a bidirectional PIM RP is configured without a group range, the default group range is 224/4 for IPv4. For IPv6, the default is ff00::/8. You can configure a bidirectional PIM RP group range to cover an SSM group range, but in that case the SSM or DM group range takes precedence over the bidirectional PIM RP configuration for those groups. In other words, because SSM always takes precedence, it is not permitted to have a bidirectional group range equal to or more specific than an SSM or DM group range.

PIM Bootstrap and Auto-RP Support

Group ranges for the specified RP address are flagged by PIM as bidirectional PIM group-to-RP mappings and, if configured, are advertised using PIM bootstrap or auto-RP. Dynamic advertisement of bidirectional PIM-flagged group-to-RP mappings using PIM bootstrap, and auto-RP is controlled as normal using the bootstrap and auto-rp statements.
Bidirectional PIM RP addresses configured at the [edit protocols pim rp bidirectional address] hierarchy level are advertised by auto-RP or PIM bootstrap if the following prerequisites are met:
  • The routing instance must be configured to advertise candidate rendezvous points by way of auto-RP or PIM bootstrap, and an auto-RP mapping agent or bootstrap router, respectively, must be elected.
  • The RP address must either be configured locally on an interface in the routing instance, or the RP address must belong to a subnet connected to an interface in the routing instance.

IGMP and MLD Support

Internet Group Management Protocol (IGMP) version 1, version 2, and version 3 are supported with bidirectional PIM. Multicast Listener Discovery (MLD) version 1 and version 2 are supported with bidirectional PIM. However, in all cases, only anysource multicast (ASM) state is supported for bidirectional PIM membership.
The following rules apply to bidirectional PIM:
  • IGMP and MLD (*,G) membership reports trigger the PIM DF to originate bidirectional PIM (*,G) join messages.
  • IGMP and MLD (S,G) membership reports do not trigger the PIM DF to originate bidirectional PIM (*,G) join messages.

Bidirectional PIM and Graceful Restart

Bidirectional PIM accepts packets for a bidirectional route on multiple interfaces. This means that some topologies might develop multicast routing loops if all PIM neighbors are not synchronized with regard to the identity of the designated forwarder (DF) on each link. If one router is forwarding without actively participating in DF elections, particularly after unicast routing changes, multicast routing loops might occur.
If graceful restart for PIM is enabled and bidirectional PIM is enabled, the default graceful restart behavior is to continue forwarding packets on bidirectional routes. If the gracefully restarting router was serving as a DF for some interfaces to rendezvous points, the restarting router sends a DF Winner message with a metric of 0 on each of these RP interfaces. This ensures that a neighbor router does not become the DF due to unicast topology changes that might occur during the graceful restart period. Sending a DF Winner message with a metric of 0 prevents another PIM neighbor from assuming the DF role until after graceful restart completes. When graceful restart completes, the gracefully restarted router sends another DF Winner message with the actual converged unicast metric.
The no-bidirectional-mode statement at the [edit protocols pim graceful-restart] hierarchy level overrides the default behavior and disables forwarding for bidirectional PIM routes during graceful restart recovery, both in cases of simple routing protocol process (rpd) restart and graceful Routing Engine switchover. This configuration statement provides a very conservative alternative to the default graceful restart behavior for bidirectional PIM routes. The reason to discontinue forwarding of packets on bidirectional routes is that the continuation of forwarding might lead to short-duration multicast loops in rare double-failure circumstances.

Junos OS Enhancements to Bidirectional PIM

In addition to the functionality specified in RFC 5015, the following functions are included in the Junos OS implementation of bidirectional PIM:
  • Source-only branches without PIM join state
  • Support for both IPv4 and IPv6 domain and multicast addresses
  • Nonstop routing (NSR) for bidirectional PIM routes
  • Support for bidirectional PIM in logical systems
  • Support for non-forwarding and virtual router instances
info source:

Wednesday, 15 May 2013

Understanding Unicast Reverse Path Forwarding (uRPF)


Network administrators can use Unicast Reverse Path Forwarding (Unicast RPF) to help limit the malicious traffic on an enterprise network. This security feature works by enabling a router to verify the reachability of the source address in packets being forwarded. This capability can limit the appearance of spoofed addresses on a network. If the source IP address is not valid, the packet is discarded. Unicast RPF works in one of three different modes: strict mode, loose mode, or VRF mode. Note that not all network devices support all three modes of operation. Unicast RPF in VRF mode will not be covered in this document.
When administrators use Unicast RPF in strict mode, the packet must be received on the interface that the router would use to forward the return packet. Unicast RPF configured in strict mode may drop legitimate traffic that is received on an interface that was not the router's choice for sending return traffic. Dropping this legitimate traffic could occur when asymmetric routing paths are present in the network.
When administrators use Unicast RPF in loose mode, the source address must appear in the routing table. Administrators can change this behavior using the allow-default option, which allows the use of the default route in the source verification process. Additionally, a packet that contains a source address for which the return route points to the Null 0 interface will be dropped. An access list may also be specified that permits or denies certain source addresses in Unicast RPF loose mode.
Care must be taken to ensure that the appropriate Unicast RPF mode (loose or strict) is configured during the deployment of this feature because it can drop legitimate traffic. Although asymmetric traffic flows may be of concern when deploying this feature, Unicast RPF loose mode is a scalable option for networks that contain asymmetric routing paths.

Unicast RPF in an Enterprise Network

In many enterprise environments, it is necessary to use a combination of strict mode and loose mode Unicast RPF. The choice of the Unicast RPF mode that will be used will depend on the design of the network segment connected to the interface on which Unicast RPF is deployed.
Administrators should use Unicast RPF in strict mode on network interfaces for which all packets received on an interface are guaranteed to originate from the subnet assigned to the interface. A subnet composed of end stations or network resources fulfills this requirement. Such a design would be in place for an access layer network or a branch office where there is only one path into and out of the branch network. No other traffic originating from the subnet is allowed and no other routes are available past the subnet.
Unicast RPF loose mode can be used on an uplink network interface that has a default route associated with it.

Unicast RPF Examples

Cisco IOS Devices

An important consideration for deployment is that Cisco Express Forwarding switching must be enabled for Unicast RPF to function. This command has been enabled by default as of IOS version 12.2. If it is not enabled, administrators can enable it with the following global configuration command: ip cef
Unicast RPF is enabled on a per-interface basis. The ip verify unicast source reachable-via rx command enables Unicast RPF in strict mode. To enable loose mode, administrators can use the any option to enforce the requirement that the source IP address for a packet must appear in the routing table. The allow-default option may be used with either the rx or any option to include IP addresses not specifically contained in the routing table. The allow-self-ping option should not be used because it could create a denial of service condition. An access list such as the one that follows may also be configured to specifically permit or deny a list of addresses through Unicast RPF:
interface FastEthernet 0/0
ip verify unicast source reachable-via {rx | any} [allow-default]
[allow-self-ping] [list]
Addresses that should never appear on a network can be dropped by entering a route to a null interface. The following command will cause all traffic received from the network to be dropped even if Unicast RPF is enabled in loose mode with the allow-default option: ip route Null0


Unicast RPF can be configured on the PIX Security Appliance, the ASA Security Appliance, the Catalyst 6500 switch, or the Cisco 7600 router Firewall Services Module on a per-interface basis with the following global command: ip verify reverse-path interface interface_name

Troubleshooting Unicast RPF

Cisco IOS Devices

The show cef interface interface_name command can be used to show that Cisco Express Forwarding and Unicast RPF have been enabled on an interface. The following response is an example of output for this command.
router#show cef interface FastEthernet 0/0
FastEthernet0/0 is up (if_number 3)
Corresponding hwidb fast_if_number 3
Corresponding hwidb firstsw->if_number 3
Internet address is
ICMP redirects are always sent
Per packet load-sharing is disabled
IP unicast RPF check is enabled
Inbound access list is not set
Outbound access list is not set
Hardware idb is FastEthernet0/0
Fast switching type 1, interface type 18
IP CEF switching enabled
IP CEF Fast switching turbo vector
Input fast flags 0x0, Input fast flags2 0x0, Output fast flags 0x0, Output fast flags2 0x0
ifindex 1(1)
Slot 0 Slot unit 0 Unit 0 VC -1
Transmit limit accumulator 0x0 (0x0)
IP MTU 1500


The show ip verify statistics command can provide information about Unicast RPF statistics on a PIX/ASA/FWSM firewall. The following example shows 21 drops by Unicast RPF on the outside interface and 2738 packets dropped by Unicast RPF on the inside interface. Dropped packets should be investigated to determine their source and administrators should consider whether the packets indicate attempts to circumvent network security.
R4-ASA5520a# show ip verify statistics
interface outside: 21 unicast rpf drops
interface inside: 2738 unicast rpf drops
interface vpn: 0 unicast rpf drops

Thursday, 9 May 2013

Understanding TCP connection flags

Cisco ASA Firewall  TCP Connection Flags.
 When troubleshooting TCP connections through the ASA, the connection flags shown for each TCP

connection provide a wealth of information about the state of TCP connections to the ASA. This information can be used to troubleshoot problems with the ASA, as well as problems elsewhere in the network.

Here is the output of the show conn protocol tcp command, which shows the state of all TCP connections through the ASA. These connections can also be seen with the show conn command.

ASA# show conn protocol tcp
101 in use, 5589 most used
TCP outside inside, idle 0:00:11, bytes 0, flags saA
TCP outside dmz, idle 0:00:29, bytes 2176, flags UIO
TCP outside inside, idle 0:00:10, bytes 0, flags saA
TCP outside inside, idle 0:01:02, bytes 4504, flags UIO
TCP outside inside, idle 0:00:23, bytes 0, flags saA
TCP outside inside, idle 0:00:23, bytes 0, flags saA
TCP outside inside, idle 0:00:23, bytes 0, flags saA
TCP outside inside, idle 0:00:11, bytes 0, flags saA
TCP outside inside, idle 0:00:10, bytes 0, flags saA

The next picture shows the ASA TCP Connection flags at different stages of the TCP state machine. The
connection flags can be seen with the show conn command on the ASA.

TCP Connection Flag Values
Additionally, in order to view all of the possible connection flags issue the show connection detail command
on the command line:
ASA# show conn detail
84 in use, 1537 most used
Flags: A − awaiting inside ACK to SYN, a − awaiting outside ACK to SYN,
B − initial SYN from outside, b − TCP state−bypass or nailed, C − CTIQBE media,
D − DNS, d − dump, E − outside back connection, F − outside FIN, f − inside FIN,
G − group, g − MGCP, H − H.323, h − H.225.0, I − inbound data,
i − incomplete, J − GTP, j − GTP data, K − GTP t3−response
k − Skinny media, M − SMTP data, m − SIP media, n − GUP
O − outbound data, P − inside back connection, p − Phone−proxy TFTP connection,
q − SQL*Net data, R − outside acknowledged FIN,
R − UDP SUNRPC, r − inside acknowledged FIN, S − awaiting inside SYN,
s − awaiting outside SYN, T − SIP, t − SIP transient, U − up,
V − VPN orphan, W − WAAS,
X − inspected by service module
